Description

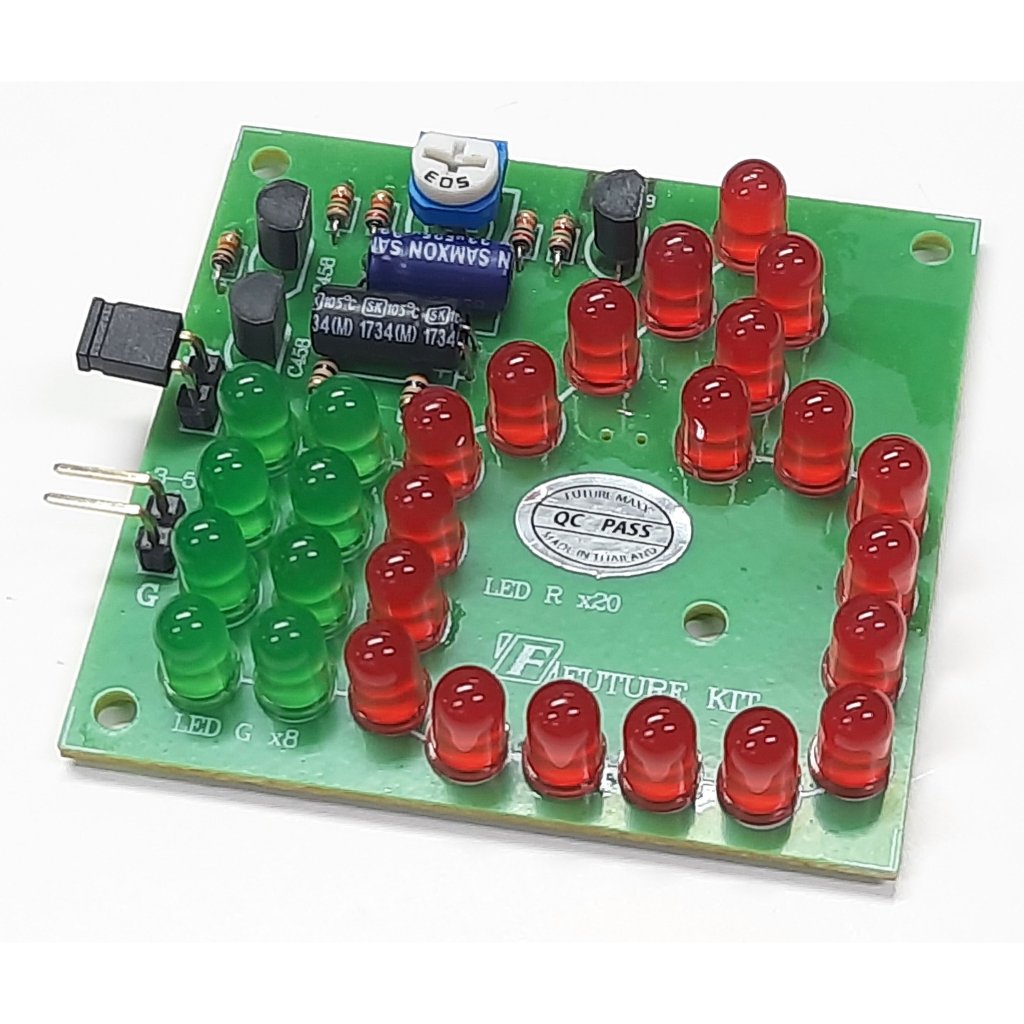

The FK1901 “Like Symbol” Flasher alternately flashes between 2 different groups of LEDs.
The LEDs are arranged in a green set and a red set, which simulate a “LIKE” emoji (thumbs up).
The flash rate can be adjusted by turning the potentiometer.
This is a very easy-build introduction to basic electronics.
Technical Specification
– Power supply : 3-5VDC.
– Electric current consumption : 50mA (max.) @ 3VDC.
– Flash frequency is adjustable with a trimpot.
– PCB dimension : 55.9 mm x 52.8mm (2.20 in. x 2.08 in. )
